CE-Series Multiple-layer Blown Film Machine
Simple in Design. Flexible in Operation
Recycling Processes of Repro-Flex
Our state-of-the-art machines are designed to be user-friendly and efficient.
We offer flexible solutions that adapt to your production needs.
Join us in making sustainable choices for a better future.
Learn MoreApplications
Our customized machines are ideal for various applications:
- Agricultural film recycling
- Post-industrial plastic scraps
- General-purpose waste recycling
- Plastic bag manufacturing for food packaging
- Reusable shopping bags production
- Extrusion and production of plastic sheets
Specifications

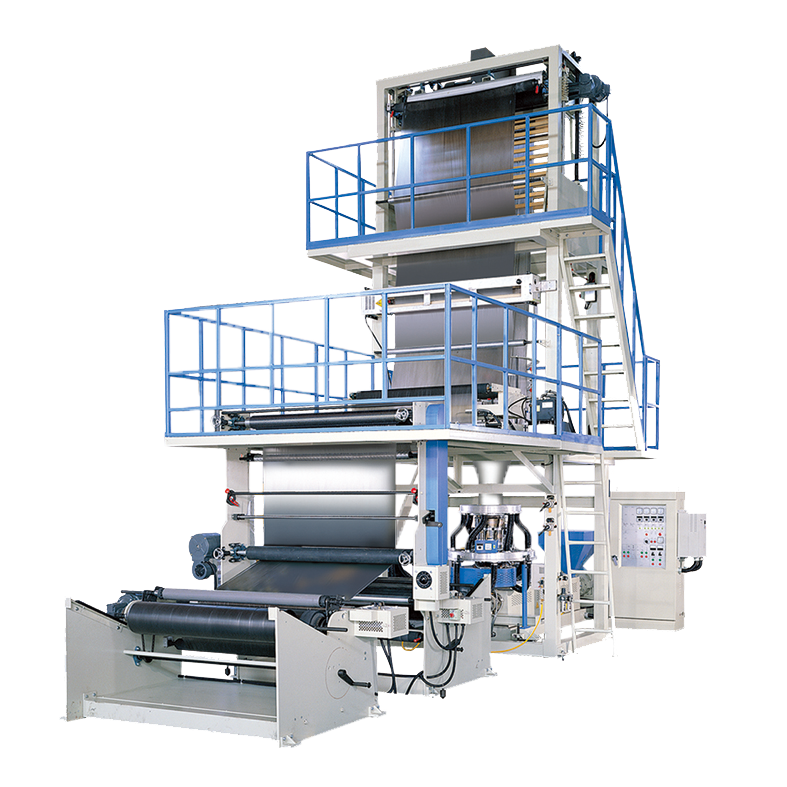

Double Layer Blown Film Machine – YF-CE-40 / YF-CE-55 / YF-CE-65 / YF-CE-85
Product Description
- CHIN FAH CE-Series is a two-layer blown film machine designed for high-quality multi-layer films.
- Features a strong steel structure for film stability and consistent output.
- Ideal for agricultural films such as greenhouse covers and crop protection.
- Equipped with special die head and air ring for high capacity and excellent film flow.
- Take-up tower is height adjustable with pneumatic pinch roller.
- Surface winder supports larger diameters with no offset and easy operation.
Optional Equipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater (corona)
- Embossing roller
- Air shaft
- Back to back (double) winder
- Rotary device
Note: All specifications and pictures above are for reference only.
If you need more information, please feel free to contact us.
| Model | YF-CE-40 | YF-CE-55 | YF-CE-65 | YF-CE-85 |
|---|---|---|---|---|
| Film Width | 750 mm | 1100 mm | 1600 mm | 2000 mm |
| Film Thickness | HDPE: 0.02–0.20 mm | |||
| Extrusion Output | 45–55 KG/HR | 100 KG/HR | 120–140 KG/HR | 140–160 KG/HR |
| Screw Diameter | 40 mm | 55 mm | 65 mm | 85 mm |
| Roller Width | 850 mm | 1200 mm | 1800 mm | 2200 mm |
Contact us
If you have any questions or need more information, please feel free to contact us.
